 Products > Soaps & Detergents machinery > Plough Shear Mixer

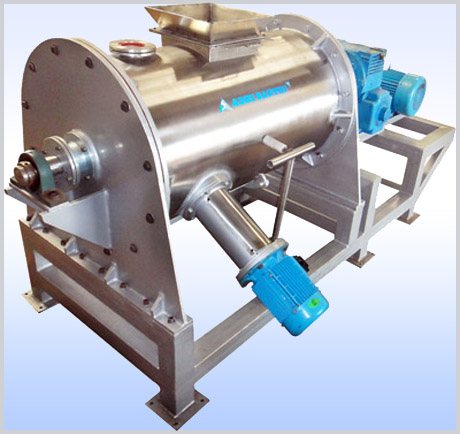

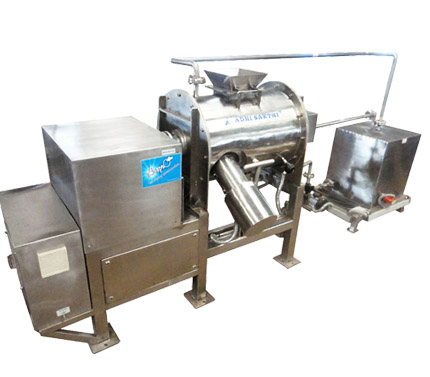

  • ADHISAKTHI manufactures robust plough shear mixers.

  • Plough shear mixer is used to mix solid and liquid constituents effectively to a homogenous mass leaving away no unmixed lumps.

  • Main cylindrical shell consists of heavy duty shaft with series of plough kept at equal spacing.

  • Choppers are mounted at the bottom of the shell in between the plough. Multiple number of choppers are placed depending upon the design of the mixer.

  • The plough shaft creates up and down circular movement of materials and the choppers with its high speed shear force disintegrate the lumps.

  • Thorough mixing of materials is accomplished because of the collision and turbulent force created within the mixer.

  • The mixer finds its application in wide range of industries like personal care, pharma, soaps, and chemical industries.

  • Discharge door is kept at the bottom which may be operated mechanically or pneumatically.

  • Jacketing of the main cylindrical shell with insulation is supplied depending upon the customer requirements.

  • Material of construction :SS 316L/ SS 304/ Mild steel.

  • Shaft ends are gland sealed are mechanically sealed depending upon applications and customer requirements.



Model Working Capacity Min Batch Size Gross Capacity Motor HP STD Motor HP Heavy
PSM-50 50 kgs 30 kgs 75 Ltrs 3 5
PSM-100 100 kgs 60 kgs 150 Ltrs 7.5 10
PSM-250 250 kgs 150 kgs 400 Ltrs 15 20
PSM-500 500 kgs 300 kgs 800 Ltrs 20 25
PSM-1000 1000 kgs 600 kgs 1500 Ltrs 40 50
Specifications are subject to change as a part of continuous improvement
