ADHISAKTHI design and deliver precise piston fillers to fill various types of viscous, semi viscous and liquid products from paste, ointment, lotion, topical, moisturizer, conditioner, cosmetics, cream, chemical, shampoo,oil etc.,
Our machinery are widely used in pharmaceuticals, cosmetics, food products and chemical
industries.
The semi automatic piston filling systems are of three types
1.Viscous cream filling machine
2.Semi Automatic liquid filling machine
3.Liquid filling machine for acid filling applications
SEMI AUTOMATIC VISCOUS CREAM FILLING MACHINE
- Highly suits to fill viscous products like Cream,gel, jam, pisti, grease, paste etc
- The machine run at a speed up to 15 pcs per min / nozzle
- Adjustable filling range and speed
- Product contact points are of SS 304/ SS 316 matching to cGMP standards
- Optional Stirrer attachment provided for products
- Drip free filling nozzle design
- Self priming
- Changeable bottom nozzle tips etc.

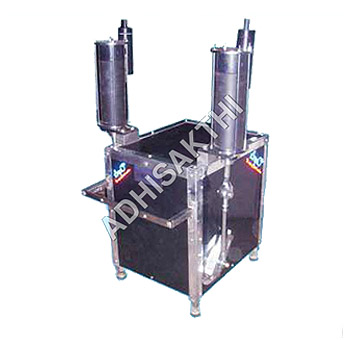

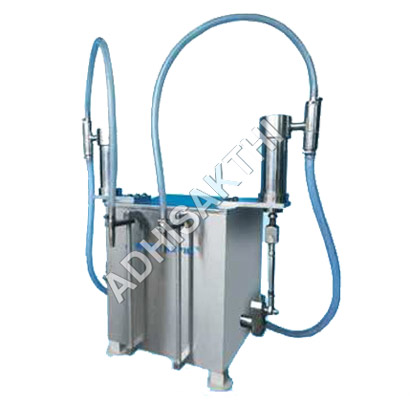

Semi Automatic liquid filling machine
- Highly suitable for filling lesser viscous liquids like shampoo, oil, lotion, syrup, low viscous chemical liquids etc
- Product contact points are made of SS 304 / SS 316 as per customer preference
- Speed of the machine is up to 15 pcs / min / nozzle which depend upon the type of the liquid, shape of the container and size of the mouth.
- The number of nozzles may be increased for an automatic line
- Variable filling ranges from 10 ml to 2000 ml Change parts applicable
- Option of single head, double head and four heads
- Complete plastic contact parts to fill acid based liquids
Technical Specifications
Model |
Liquid |
Viscuous product |
Speed in Pcs/Mins/Nozzle |
Upto 15" |
Upto 20" |
No. of Filling Heads |
2 |
1 |
Contact Parts |
SS 304/316/UMHDPE** |
SS316 |
Filling Volume in ml |
0-1000 |
0-1000 |
Filling Accuracy |
+_0.5% |
+_0.5% |
Hopper Capacity in Ltrs |
NA |
30 |
Power Required in KW |
0.75 |
0.75 |
Dimension (LxBxH) in mm |
855x625x1250 |
1350x500x1800 |
Weight (Approx.)in kgs |
150 |
225 |
* Speed of the machine depends up on the filling column and nature of the product. |
** UMHDPE contact parts are used for acid filling applications |
|
