Adhisakthi supplies vertical form fill and sealing machines to pack materials in to pouches.
The machine is compatible to run different packing materials made of PP/LD/Laminates etc.
The following materials can be packed:
Granules, Powders, Food Products, Maida, Rava, Atta, Chips Shortcut vermicellis, Sugar, Salt etc.
Type of dosing mechanisms
Following type of dosing mechanisms are provided depending upon the nature and the weighing accuracy required.
Volumetric: Oscilating cup dosers or rotary cup dosers.
Weightmetric: Load Cell Based.
- Single Head Weighers
- Twin Head Weighers
- Four Head Weighers
- Multi Head Weighers
Auger Drive: Servo Based Auger Dosers
Salient Features of the Basic Machine

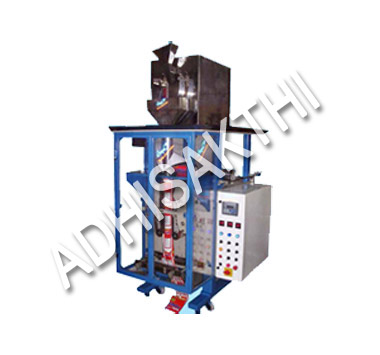

The basic machine is supplied with the option of belt draw down mechanism or the draw bar mechanism.
Product contact points are made of SS 304.
Machine if fully controlled through PLC.
The sealed packets are elevated to the rotary turn table for checking and packing.
All pneumatic components are of FESTO or SMC make
Hydraulic web aligner is provided for the machine as an optional attachment.
Anti electro static device is supplied for LD packing applications.

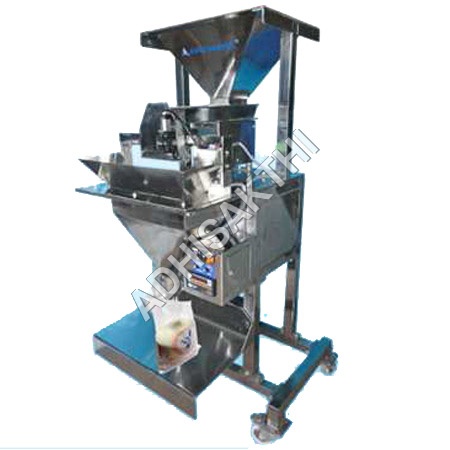

Easy WEIGH FILLER
Adhisakthi provides customers an easy way to fill with the EASY WEIGH FILLER.
Packaging process made simple, accurate and automated at an affordable cost.
Highly suitable for free flowing products like dry powders. rice, grains, spices, chips, salts, candies,
small nuts, coin biscuits, tea, dhal and similar products
Stainless Steel Contact Parts:
Standard Load Cell and control panel
Motorised gate opening system
Trolley mounted
20 Its hopper capacity
Single phase input
No compressor required
MODELS OF MACHINE AVAILABLE WITH ADHISAKTHI MULTI HEAD WEIGHER
| Model |
Description |
Filling Range |
Speed/min |
Product Nature |
| VF-MAX-RCP |
ROTARY CUP DOSING WITH FFS |
500 G /1000 G |
Up to 40 |
FREE FLOW POWDERSGRANULES |
| VF-MAX-OCP |
OSCILLATION CUP DOSING WITH FFS |
500 G / 1000 G |
Up to 40 |
FREE FLOW POWDERS, GRANULES |
| VF-MAX-AUG-SERVO |
SERVO BASED AUGER FILLING WITH FFS |
500 G / 1000 G |
Up to 40 |
STICKY POWDERS |
| VF-MAX-LC-2H |
LINEAR LOAD CELL -2 HEAD WITH FFS |
500 G / 1000 G |
Up to 20 |
DRY MIX DETERGENT POWDERS |
| VF-MAX-LC-3H |
LINEAR LOAD CELL - 3 HEAD WITH FFS |
500 G / 1000 G |
Up to 30 |
DRY MIX DETERGENT POWDERS |

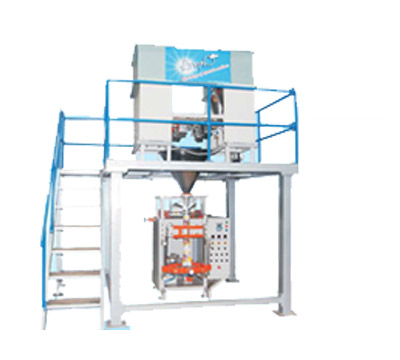

| VF-MAX-LC-4H |
LINEAR LOAD CELL - 3 HEAD WITH FFS |
500 G / 1000 G |
Up to 30 |
DRY MIX DETERGENT POWDERS |

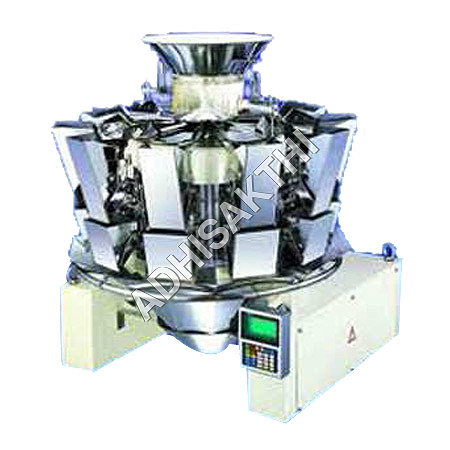

| VF-MAX-MH-10 |
MULTIHEAD WEIGHER - 10 HEAD WITH FFS |
250 G |
Up to 50 |
SHORT CUT VERMICELLI, CHIPS ETC |
| VF-REG-RCP |
ROTARY CUP DOSING WITH FFS - REGULAR |
250 G |
Up to 40 |
FREE FLOW POWDERS, GRANULES |

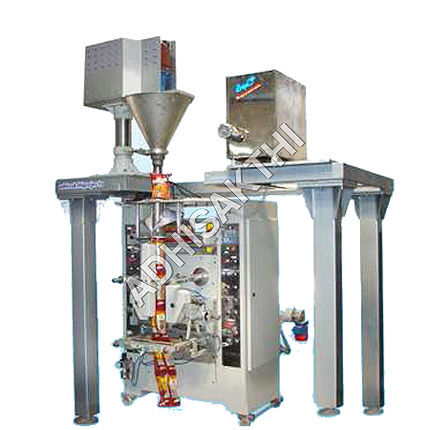

| VF-REG-AUG-SERVO |
SERVO BASED AUGER FILLING WITH FFS-REG |
500 G / 1000 G |
Up to 50 |
STICKY POWDERS |

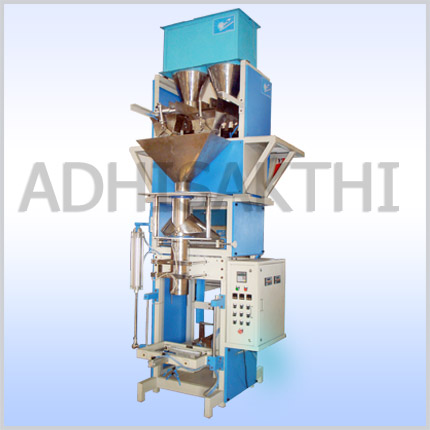

| VF-MEGA |
LINEAR WEIGH FEEDER -2 HEAD |
3 to 5 KGS |
Up to 10 |
POWDERS |
| VF-SCT-S |
SACHET SINGLE LANE |
50 G |
Up to 40 |
FREE FLOW POWDERS, GRANULES |
| VF-SCT-D |
SACHET DUAL LANE |
50 G |
Up to 80 |
FREE FLOW POWDERS. GRANULES |
'ADHISAKTHI MANUFACTURES MACHINERY OF THE ABOVE MODELS ONLY
**LIQUID FILLING MACHINES IN POUCHESS ARE NOT MANUFACTURED BY ADHISAKTHI |
Specifications are subject to change as a part of continuous improvement. |
