- The Horizontal Flow Wrap machine packs solid products in heat sealable laminates to a pillow pack
- Products like tubes, soaps, detergent bars, bearings, medical syringe etc can be wrapped.
- Product contact parts are made of SS 304.
- PID based temperature controllers.
- The speed of the machine varies from 50 pcs per minute to 120 pcs per minute.
- The machine runs with the help of positive infinite variable speed drive.
- Change over between products is easy and simple.
- Easy access to all moving parts for lubrication and maintenance.
- The machine is designed to be simple and user friendly without any complications.
- Catridge type heaters on the heat sealing rollers.
- Products counter is provided as an optional accessory.
- Online perforation blades are adjustable for cutting to individual pieces.
- Direct online link up facility from the infeed line.

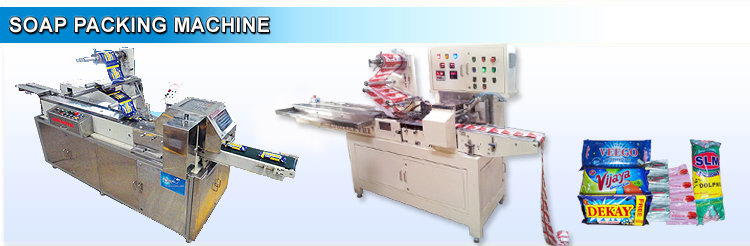

- For soap packaging, the machine is suitable to link up online with ADHISAKTHI's pneumatic cutting machine.
- Forward link up provision with ADHISAKTHI's Cartoning Machine.
- Option of ADHISAKTHI's Auto Case Packer link up system enables complete end of line automation optimizing manpower shortages.
| Model |
HFM-120 |
| Speed (Pcs/Min) |
Up to 120* |
| Pouch Size (LxW) in mm |
200 x 150 |
| Auto Product in Feed |
Optional |
| Power Required in KW |
4.00 |
| Dimension (L x B x H) |
3793 x 750 x 1529 mm |
| Weight (Approx.) |
800 kgs. |
| Online Batch Coding |
Optional |
| Depends upon product shape, packing material etc. |
Specifications are subject to change as a part of continuous improvements. |
