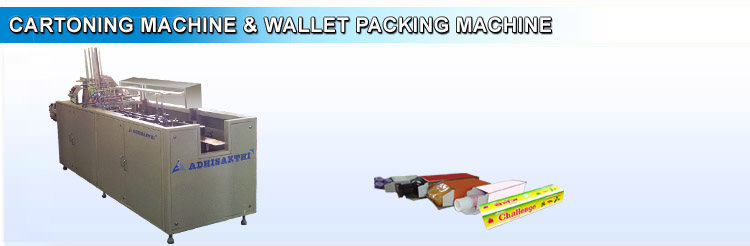

BEST MODEL TO SUIT THE SINGLE HEAD TUBE FILLING MACHINE WITH DIRECT ONLINE LINKUP SYSTEM

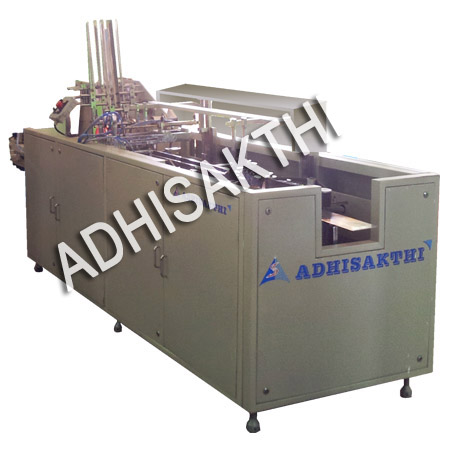

- Cartoning machine is designed to automatically erect cartons, insert the products and close the flaps by tucking in or pasting suiting to the design of cartons.
- Products like Tooth paste, Creams, Soaps, Table strips, Bearings etc. can be packed.
- Speed of the machine is up to 70 pcs/ minutes.
- The machine is designed with Intermittent motion mechanism.
- Automatic product in feed is provided as an optional feature
- Geneva Indexers or Ferguson Indexers are used.
- Chains are suit to adjust to variable carton sizes
- No Carton no product and vice versa interlock are provided
- SS side covers with polycarbonate top covers and micro switch safety systems are provided.
- Machine is fully controlled through PLC
- Power required 2 HP
- Facilitates on line link up with bundling and shrink wrapping machine
- Simple and easy change over
Optional Accessories
- Hot melt glue dispensing and flap pasting mechanism.
- Automatic infeed link up mechanism.

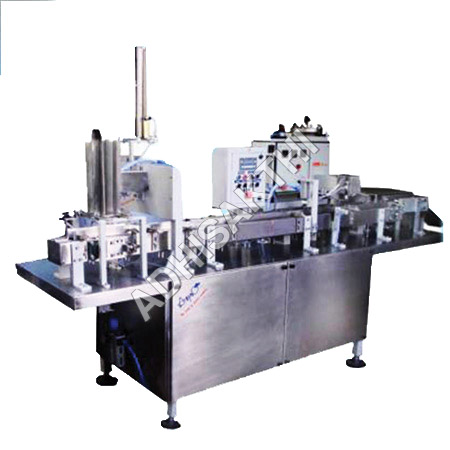

WALLET PACKING MACHINE
- The wallet packing machine is designed to pack products like Condoms, tablet blisters etc.
- Automatic wallet opening by vacuum suction cups
- Online product loading system
- Hot melt glue dispenser and flap pasting mechanism
- Fully PLC controlled and ferguson indexer driven
- Easy change over procedures
- Adjustable carton carrier chain specially designed for reduced change over time.
- All pneumatic components are made of FESTO / SMC
- Speed up to 40 pcs per minute
| Model |
CRT-HIM-60 |
| Speed (Pcs/Min) |
Up to 70* |
| Carton Size - Maximum (LxWxH) in mm |
180 x 61 x 40 |
| - Minimum (LxWxH) in mm |
65 x 47 x 25 |
| Auto Product insertion |
Optional |
| Power Required |
1.5 KW |
| Air consumption in CFM |
25 |
| Dimension (LxBxH) |
2388 x 645 x 810 mm |
| Weight (Approx.) |
410 kgs. |
| Hot melt glue application |
Optional |
| Online batch coding |
Optional |
| Vacuum Pump |
In-Built |
| * Depends upon container Size, nature and product shape etc. |
Specifications are subject to change as a part of continuous improvement.
