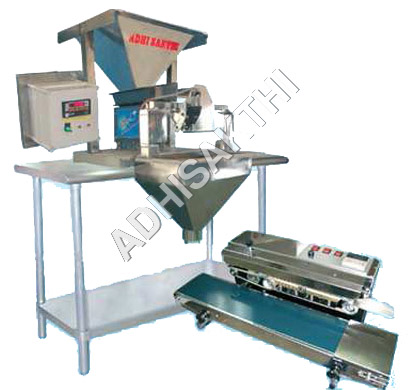

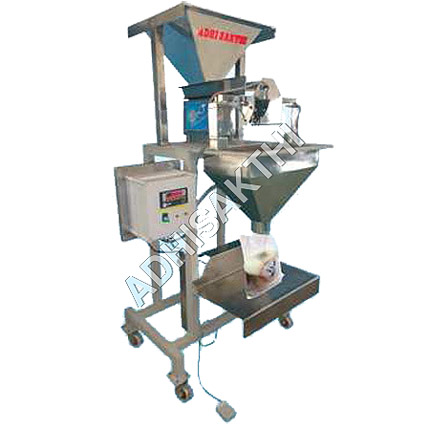

Adhisakthi gives customers an easy way to fill with the EASY WEIGH FILLER Packaging process made simple, accurate and automated at an affordable cost.
Highly suitable for free flowing products like rice, grains, spices, chips, salts, candies, small nuts, coin, biscuits, tea, dhal and similar products
Salient Features:
- Stainless Steel Contact Parts
- Standard Load Cell and control panel
- Motorised gate opening system
- Trolley mounted
- 20 Lts hopper capacity
- Single phase input
- No compressor required
Optional Attachments:
ASPRO AUTO HOPPER TOPPER - To fill the hoppers automatically
ASPRO SUPER PACKER - ADHISAKTHI 's innovative pouch filler and sealer
AVAILABLE MODELS
EWF - MINI Table top model
EWF - MAXI
EWF - MEGA
- The machine is highly useful for repacking needs of super markets and packaging needs ofindustries.
- No Change parts required within the given range for respective models.
- No need for compressor because of motorised door opening.
- Load cell being critical is best Suited to be accurate and durable.
- Control panel is operator friendly with auto control and manual dosing options.
- All contact parts are made of stainless steel / SS 304 )
- Accuracy of fill
 05% depending upon product nature
- Filling speed and accuracy depends upon product nature
- Weigh bucket is easy to remove for cleaning
- Auto hopper topping through specially designed elevator
- Link up system for ASPRO SUPER PACKER
Technical Specifications
| Model |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kgs) |
Filler Capacity |
Filling Speed |
Power (KW |
| EWF- MIN |
900 |
750 |
1000 |
180 |
Up to 1 kg* |
Upto 10 pkts / min |
0.6 |
| EWF- MAXI |
1000 |
850 |
1900 |
300 |
Up to 2 kg* |
Upto 7 pkts / min |
0.6 |
| EWF- MEGA |
1200 |
1000 |
2100 |
400 |
Up to 5 kg* |
Upto 5 pkts / min |
0.9 |
*Filling Speed and accuracy are inversely propotional. Both depend upon product nature such as flow characteristics, Particle size , density etc.
*Specifications are subject to change
|
