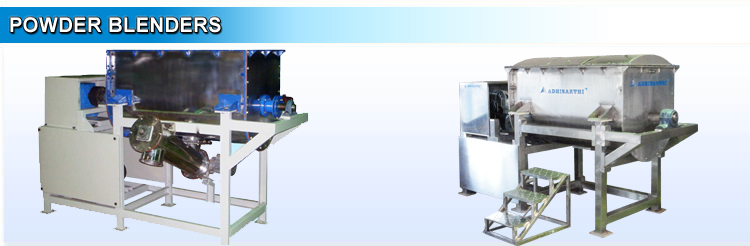

Powder Blenders

Powder Blenders
Single Row
Double Row
Double Row
Double Row
  Powder blenders constructed with solid 'U' trough fitted with double helical agitator provide effective mix of different powder and liquid materials. The design of the blender ensures complete mix of all the particles leaving no unmixed spots.

The requirement of powder blender is found in most of the industries ranging from Pharma, foods, cosmetics, pesticides, chemical industries.

  • The blender is constructed with 'U' trough made of SS/MS material.
  • Powder profiles of different types are constructed in the main shaft to provide thorough mixing.
  • Design of powder profiles depends upon the product requirements.
  • Forward and reverse helix continuous powders provide gentle mixing.
  • Top of the blender will be covered with SS sheets or Polycarbonate windows.
  • End seals are glanded or mechanically sealed.
  • Bottom discharge is made of knife edge gate valves or Shutters or ball valves based on the product requirement.
  • The discharge may be directly connected with screw conveyors for further applications like filling or grinding.
Model RB-150 RB-250 RB-500 RB-1000 RB-2000
Working Capacity(Kgs) 150 250 500 1000 2000
Contact Parts MS/SS304/ SS316 MS/SS304/ SS316 MS/SS304/ SS316 MS/SS304/ SS316 MS/SS304/ SS316
Minimum Batch size (kgs) 100 175 350 700 1500
Power Required (KW) 2.2 3.7 5.5 11 18
Gross Volume (Ltrs) 225 375 750 1500 3000
Trough Dimension (LxWxH) 1200x450x550 1250x600x750 1500x750x900 1800x850x1000 2500x1000x1200
Over all Dimension 2300x1200x1800 2800x1400x2000 3400x1500x2100 3600x1600x2300 4300x2000x2600
Weight (Approx -Kgs) 500 800 1100 4000 6000

Bottom Discharge

Knife Gale / ball valve/manual door Knife Gale / ball valve/manual door Knife Gale / ball valve/manual door Knife Gale / ball valve/manual door Knife Gale / ball valve/manual door

Type of Powder

Double helix/ forward reverse/ Half cut Double helix/ forward reverse/ Half cut Double helix/ forward reverse/ Half cut Double helix/ forward reverse/ Half cut Double helix/ forward reverse/ Half cut
Powder Speed (RPM) Up to 40 Up to 40 Up to 30 Up to 25 Up to 20
